Cutting Equipment

Labotom-3 has a - Powerful 3.0 kW / 3.2 kW cutting motor and a cutting capacity of up to 90 mm (3.5") diameter. - Cutting table with top surface of stainless steel and integrated T-slots. - Bright LED light in the cutting chamber. - Adjusta

Category
Surface Treatments Laboratory

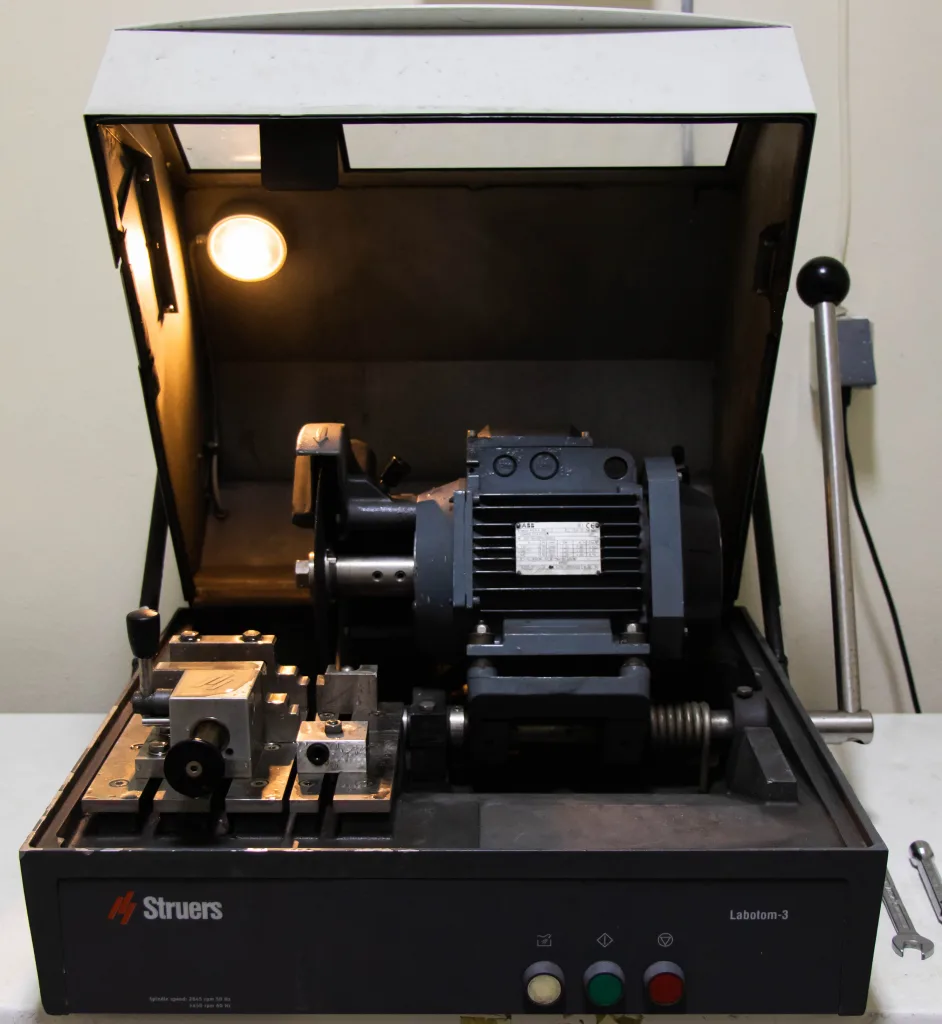

Labotom-3 has a
– Powerful 3.0 kW / 3.2 kW cutting motor and a cutting capacity of up to 90 mm (3.5″) diameter.
– Cutting table with top surface of stainless steel and integrated T-slots.
– Bright LED light in the cutting chamber.
– Adjustable cutting handle to suit the height of the operator and the table unit.
– Flush hose for cleaning the cutting chamber.

Data table for Cutting Equipment – ITU Surface Lab
Specifications
Cutting Motor  Three-phased motor: 3.2 kW (4.3 HP) at 50 Hz – 3.0 kW (4.1 HP) at 60 Hz
Cut-off Wheels  Rotational speed (running idle): 2845 rpm (50 Hz) – 3450 rpm (60 Hz)
Cut-off Wheel size   250 mm x 1-1.5 mm x 32 mm (9.8″ x 0.04″ – 0.06″ x 1.26″)
Cutting Chamber Maximum workpiece dimensions:
To the left of the cut-off wheel: Width: 145 mm (5.7″), depth: up to 500 mm (19.7″), height up to 250 mm (9.8″) To the right of the cut-off wheel:
Width: 75 mm (3.0″), depth: up to 210 mm (8.3″)
Side opening for protruding workpieces:
Left hand side (optional): 103 x 95 mm (4.1″ x 3.7″)
Right hand side: 25 x 25 mm (1.0″ x 1.0″)
Cutting Table Table size: 200 x 215 mm (7.9″ x 8.5″) with three 10 mm T-slots
Cutting Capacity Max. cutting diameter: 90 mm (3.5″). Other dimensions: Please see graph.
Dimensions and weight Width: 651 mm (25.6″)
Height: 410 mm (16.1″)
Depth: 645 mm (25.4″)
Weight: 80 kg (180 lbs.)
Environment Noise level: Approx. 64 dB(A) at a distance of 1.0 m (39.4″) from the machine, running idle.
