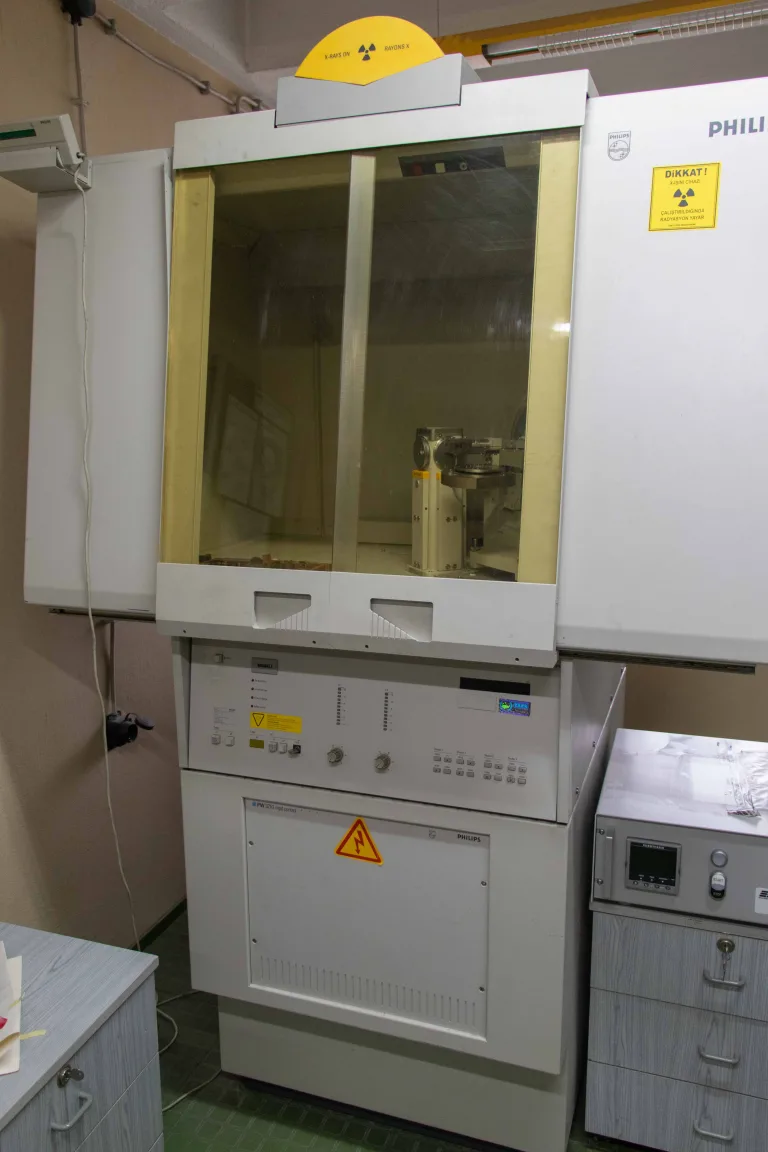

XRD-X-Ray Diffractometer

Equipment XRD-X-Ray Diffractometer Brand Philips Specifications X-ray tube (Co, but others at request): line focus and point focus Goniometer (0 – 160 °2θ, min step size 0.005 °2θ) Fixed divergence and anti-scatter slits (1/32, 1/16, 1/8, 1

Category
Characterization Laboratory

Data table for XRD-X-Ray Diffractometer – ITU Surface Lab

Equipment

XRD-X-Ray Diffractometer

Brand

Philips
Specifications
  • X-ray tube (Co, but others at request): line focus and point focus
  • Goniometer (0 – 160 °2θ, min step size 0.005 °2θ)
  • Fixed divergence and anti-scatter slits (1/32, 1/16, 1/8, 1/4 , 1/2, 1, 2, 4° )
  • Fixed receiving slits (0.1, 0.2, 0.3 mm)
  • Incident beam filter (tube dependent, no diffracted beam monochromator)
  • Incident beam mask (2, 5, 10, 15, 20 mm)
  • Gas filled proportional detector
  • Point focus
  • Goniometer (0 – 150 °2θ, min step size 0.005 °2θ)
  • Eulerian cradle (0 <ψ< 90 degrees, 0 <φ< 360 degrees)
  • Parallel plate collimator (0.27 rad)
  • Ø 2mm quasi parallel incident beam opening.
  • Gas filled proportional detector
